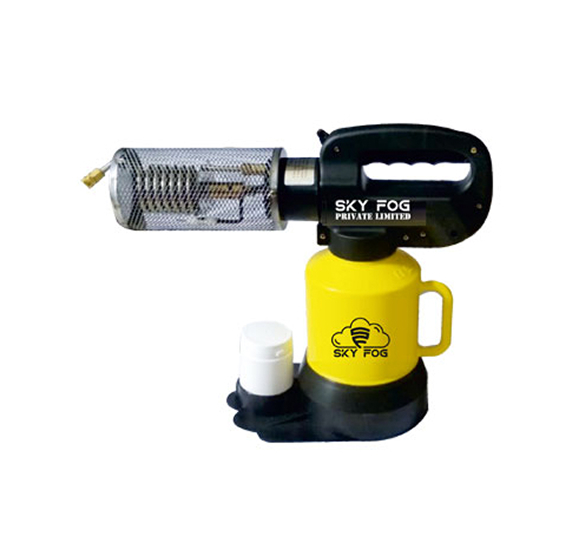

Portable Mini Thermal Fogger
SKY FOG 1000

Type
Gas thermal indoor Fogger
Mode of Operation
Butane gas as consumeable
Fumigation by
Diesel
Output / Coil
1.5-1.8 L/H / Hollow Cone
Nozzle / Power
Jet Brass Type / 0.55 HP
Chemical Tank
2 Litre with residual tank
Water tank
350 ml. for cleaning the coil after fogging.
Starter
Piezo type. Press switch
Standard starting device
Manual start
Burner
Double-netted burner
Standard flow rate
40 l/h
Weight / Dimensions
2.5 KG / 45 x 16 x 36 cms

Authorized service centers @ Chennai, Erode, Tirunelveli, Trichy

LARGE TUBULAR FRAME // CONTROL PANEL
K-22-20-STD 1
K-22-20-O 2

The all-rounder for leightweight fogging

Empty weight
46 kg
Size (length x breadth x height)
138 x 87 x 50 cm
Capacity of solution tank
80 litres (tolerance 1-2 litres) made of stainless stee
Capacity of fuel tank
20 ltr
Cubic capacity of engine
1000 cm³
Max. performance of engine
37,4 kW (50,8 hp, 32.200 kcal/h)
Max. fuel consumption
3,8 l/h
Automatic ignition
Electronic ignition coil fed by 4 x dry batteries = 6V
Standard starting device
Manual start
Flow rate
10 - 75 l/h (according to nozzle size used)3
Standard flow rate
40 l/h
Droplet size spectrum (depending on oil viscosity and nozzle size used)
< 25 μm (oil) / < 60 μm (oil/water) / < 150 μm (water)
Optional
• Electrical starting device
• Remote control including automatic cut-off device and manual start
• Turntable

Product Description

Thermal fogging is the generation of ultra-fine droplets in a range of 1-50 µm using thermo-pneumatic energy. Liquid substances are vaporized in the unit and form ultra-fine aerosols by condensing on contact with cool ambient air. Thermal fogging is used for any pest control task where active substances should be uniformly distributed even in inaccessible places, without leaving undesirable residues. The fogging technique is the solution for treating large areas and spaces with a minimum quantity of pesticide solution, less operational work and with little harm to the environment (lessresidues, no penetration into the ground), e.g. in the field of public health, stock protection, plant protection, disinfection, decontamination, deodorization and cinema effects. The K-10-SP is registered at WHO (World Health Organization)

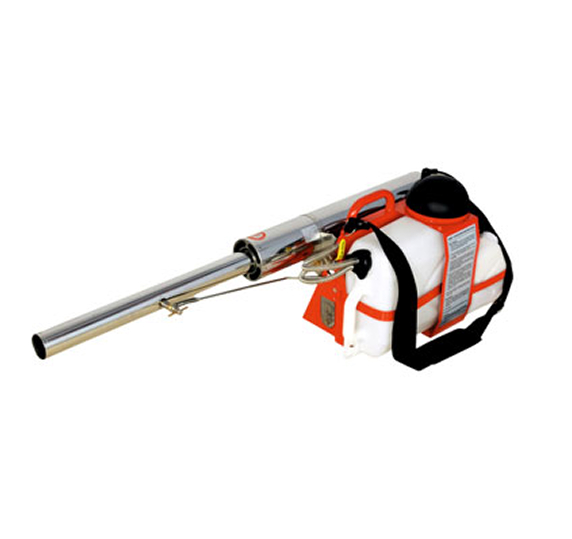

PORTABLE THERMAL FOGGER
K-10-SP

The all-rounder for leightweight fogging

Empty weight
7,6 kg
Dimension
130 x 29 x 33 cm
Capacity of solution tank
5 ltr
Capacity of fuel tank
2 ltr
Cubic capacity of engine
300 cm³
Performance of engine
8,75 kW (12,05 hp, 7.650 kcal/h)
Fuel consumption
1,9 l/h
Automatic ignition
electronic ignition coil fed by 4 x dry batteries = 6V
Starting device
manual quick start
Flow rate
8 – 20 l/h (according to nozzle size used)
Standard flow rate
8 l/h

Product Description

Thermal fogging is the generation of ultra-fine droplets in a range of 1-50 µm using thermo-pneumatic energy. Liquid substances are vaporized in the unit and form ultra-fine aerosols by condensing on contact with cool ambient air. Thermal fogging is used for any pest control task where active substances should be uniformly distributed even in inaccessible places, without leaving undesirable residues. The fogging technique is the solution for treating large areas and spaces with a minimum quantity of pesticide solution, less operational work and with little harm to the environment (lessresidues, no penetration into the ground), e.g. in the field of public health, stock protection, plant protection, disinfection, decontamination, deodorization and cinema effects. The K-10-SP is registered at WHO (World Health Organization)
